IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester

IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester

Merknaam:	Sinuo
Modelnummer:	SN2202
MOQ:	1
Prijs:	Customized
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	10 sets per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

Calibration Certificate (Cost Additional)

Valhoogte:

Instelbaar bereik: 0,4 m ~ 1,5 m

Effectwijze:

Verticale val- en slingerimpact

Stalen bal:

Φ50,8 mm, massa 535 g

Het opheffen wijze:

Elektrische aandrijving

Klemmethode:

Elektromagnetische adsorptie- en vrijgavecontrole

Bedrijfstemperatuur:

0 ~ 40 ℃

Verpakking Details:

multiplex

Levering vermogen:

10 sets per maand

Productbeschrijving

IEC 62196-1 Compliant Vertical & Pendulum Dual-Mode Steel Ball Impact Tester

Product Information

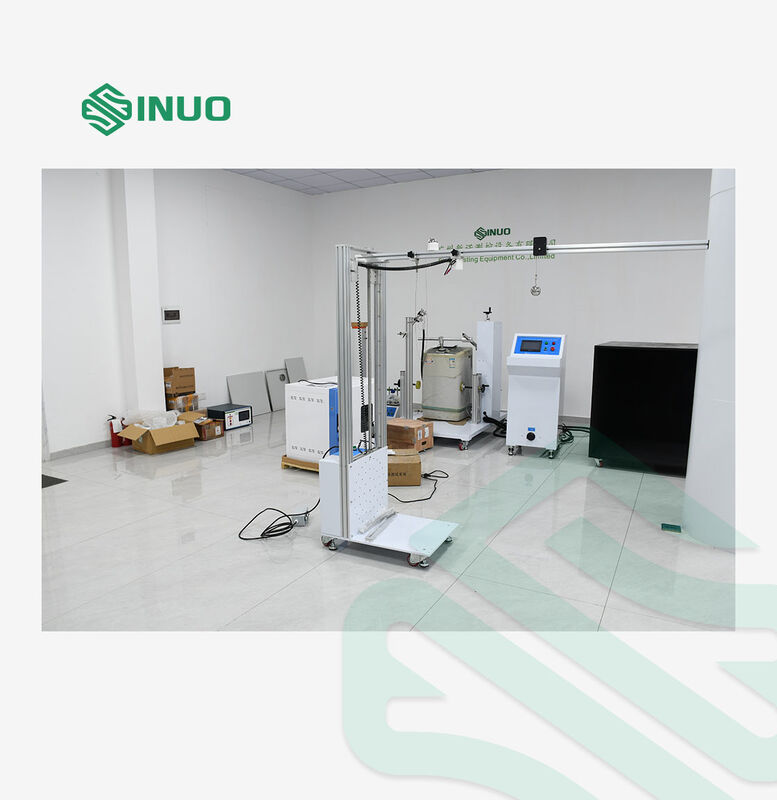

This steel ball impact tester is used to test the anti-drop impact performance of EV accessories. It features two switchable test modes: vertical free drop impact and horizontal pendulum impact on test samples. Equipped with electric lifting and electromagnetic clamping structure, it supports adjustable drop height from 0.4m to 1.5m to generate various impact energy as required.

Compliant Standard

• IEC62196‑1:2025 Clause 26.2

• IEC60950‑1:2005 Clause4.2.5

• IEC60598‑1:2014 Clause4.13.4a

• IEC60065:2005 Clause12.1.3 & Figure8

Technical Parameters

Test Purpose	Conduct drop impact resistance test on equipment enclosures
Test Principle	Free vertical drop or free pendulum impact on test samples
Equipment Structure & Features	Supports two test modes: vertical drop impact and horizontal pendulum impact
Operating Environment	Power Supply: AC220V±10%, 50/60Hz; Operating Temp: 0~40℃; Humidity: 30%~90%

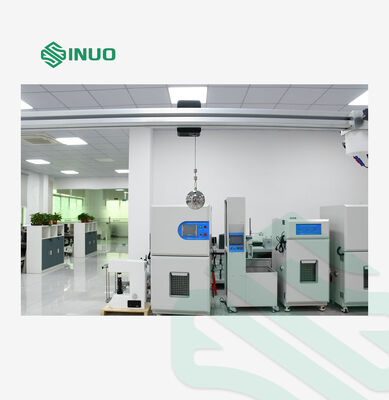

Impact Steel Ball	Steel ball: Φ50.8 mm, mass 535 g
Impact Mode	Vertical drop impact and pendulum impact, switchable.
Drop Height	Adjustable range: 0.4 m ~ 1.5 m
Impact Energy	Formula: E=mgH, supports impact energy values (J) listed below and custom requirements.

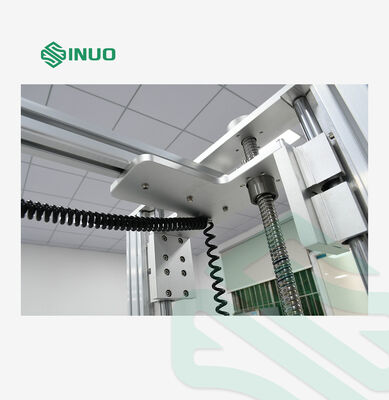

Lifting Mode	Electric drive

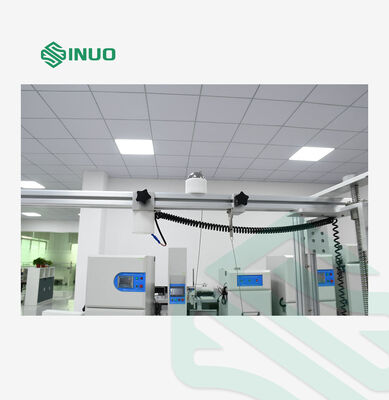

Clamping Method	Electromagnetic adsorption & release control
