Elektrisch voertuig het Testen Materiaal

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

Merknaam:	Sinuo
Modelnummer:	SN553-RV8000
MOQ:	1
Prijs:	Customized
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	10 sets per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Calibration Certificate (Cost Additional)

Frequentiebereik:

10 ---- 60 Hz

Max. ladingscapaciteit:

300KG

Versnellingswaaier:

0 --- 11G

Golfvorm:

Sinusgolf

Gewicht uitrusting:

500 kg

Tafelgrootte:

1000 mm × 800 mm

Afmetingen van apparatuur:

B1050mm×D820mm×H680mm

Voeding:

AC220V/50HZ/eenfasig

Verpakking Details:

multiplex

Levering vermogen:

10 sets per maand

Productbeschrijving

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

Product Overview

The SN553‑RV8000 Mechanical Vibration Testing Machine is designed to simulate transportation vibration and mechanical shock for household appliances, electronics, components, modules, instruments, and electromechanical products. It fully complies with reliability test standards including IEC 60068, MIL‑STD‑810, ISO 10816, and UL, making it ideal for quality verification, reliability testing, and transport simulation.

Technical Parameters

Table Size	1000mm×800mm
Frequency Range	10----60Hz
Max. Load Capacity	300KG
Acceleration Range	0---11G
Amplitude Range	0—2.6mm(P-P),adjustable
Control Interface	RS232 /9P
Functions	Fixed frequency, sweep (logarithmic Oct/min, linear), multi-stage random
Waveform	Sine wave
Vibration Direction	Vertical (X/Y/Z directions achieved by adjusting product orientation)
Equipment Dimensions	W1050 mm×D820 mm×H680 mm
Equipment Weight	500KG
Power Supply	AC220V/50HZ/Single-phase

Product Features

Centrifugal excitation structure, low noise, stable performance
Synchronous reverse drive for uniform vibration and minimal lateral displacement
Lockable casters for easy movement; no fixed foundation required
Amplitude preview & stepless adjustment for flexible testing

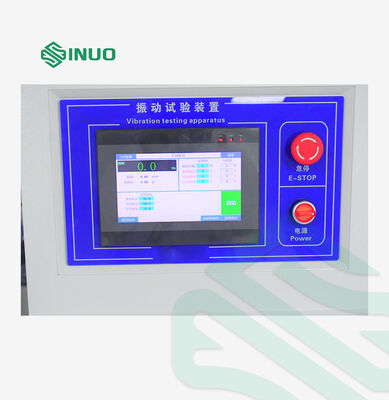

Real‑time display: amplitude, acceleration, frequency, test time & cycles
User‑friendly Chinese/English Windows operation interface
Supports unlimited test parameter groups & test report printing
Wide application: household appliances, electronics, components, modules, instruments
