IPX1–IPX8 Comprehensive Waterproof Test System Automotive Waterproof Test Equipment

IPX1–IPX8 Comprehensive Waterproof Test System Automotive Waterproof Test Equipment

Merknaam:	Sinuo
Modelnummer:	SN4418
MOQ:	1
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	10 sets per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Calibration Certificate (Cost Additional)

Druppelgebied:

1000 mm × 1000 mm

Druppeltarief:

1 mm/min (IPX1), 3 mm/min (IPX2)

De diameter van het druppelgat:

Φ0,4 mm

Draaischijfdiameter:

Φ600 mm

Oscillerende buisradius:

R400 mm / R600 mm / R800 mm

Schommelingshoek:

±45°, ±60°, ±90°, ±180° verstelbaar

Pijpdiameter:

Φ15 mm

Afstand tussen de sproeiers:

50 mm

Verpakking Details:

EXPORTVERPAKKING

Levering vermogen:

10 sets per maand

Productbeschrijving

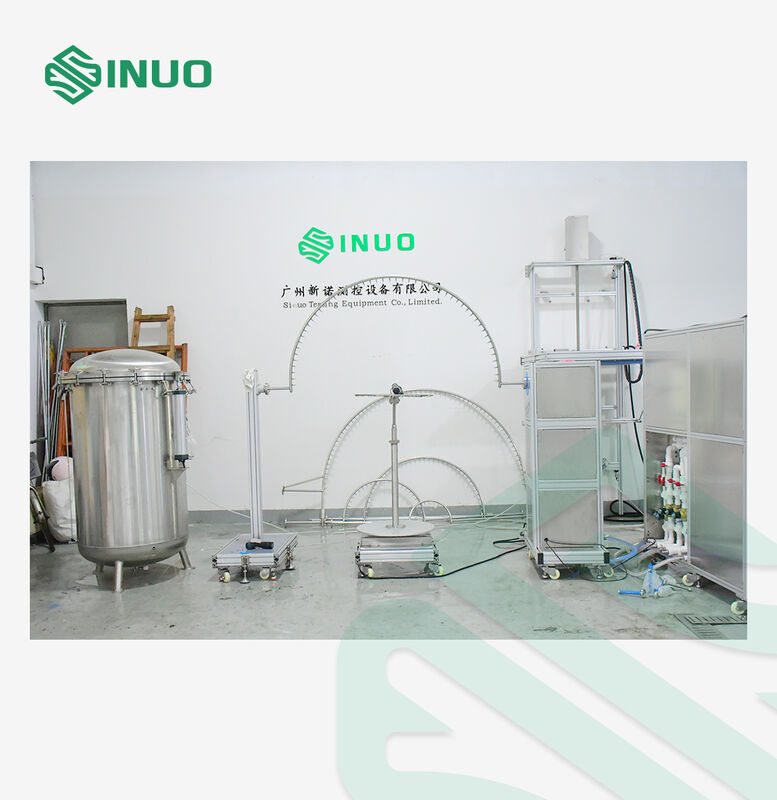

IPX1–IPX8 Comprehensive Waterproof Test System Automotive Waterproof Test Equipment

Product Overview

The IPX1–IPX8 Comprehensive Waterproof Test System is designed to evaluate the waterproof performance and ingress protection capability of electrical and electronic products. The system can simulate multiple water exposure conditions including dripping, spraying, water jetting, and immersion tests to verify whether products meet the required Ingress Protection (IP) ratings.

This equipment integrates testing functions for IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8, allowing laboratories and manufacturers to conduct complete waterproof testing with a single system. It is widely used for testing household appliances, automotive components, electronic devices, lighting products, outdoor equipment, and industrial electrical enclosures.

The system features a modular design, precise water flow control, adjustable test parameters, and a durable stainless-steel structure, ensuring reliable testing performance, long service life, and full compliance with international testing standards.

With its advanced design and user-friendly operation, this equipment provides an efficient and standardized solution for product waterproof performance evaluation.

Technical Parameters

Test Level	Parameter	Specification
IPX1 – IPX2 Drip Test	Drip Area	1000 mm * 1000 mm
	Drip Hole Diameter	Φ0.4 mm
	Drip Rate	1 mm/min (IPX1), 3 mm/min (IPX2)
	Turntable Diameter	Φ600 mm
	Turntable Speed	1–5 rpm
	Turntable Tilt Angle	0°–15° adjustable

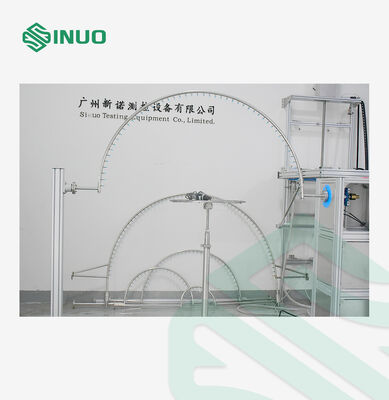

IPX3 – IPX4 Oscillating Tube Test	Oscillating Tube Radius	R400 mm / R600 mm / R800 mm
	Oscillation Angle	±45°, ±60°, ±90°, ±180° adjustable
	Swing Speed	Approx. 60°/s
	Pipe Diameter	Φ15 mm
	Nozzle Spacing	50 mm
	Nozzle Diameter	Φ0.4 mm
	Water Pressure	50–150 kPa adjustable
	Flow Rate per Nozzle	0.1 L ±5% / min
IPX5 Water Jet Test	Nozzle Diameter	Φ6.3 mm
	Water Flow Rate	12.5 L ±5% / min
	Water Jet Core	Approx. Ø40 mm at 2.5 m distance
	Test Distance	2.5 – 3 m
	Test Duration	1 min per m² of enclosure surface (minimum 3 min)
IPX6 Powerful Water Jet Test	Nozzle Diameter	Φ12.5 mm
	Water Flow Rate	100 L ±5% / min
	Water Pressure	Approx. 100 kPa
	Water Jet Core	Approx. Ø120 mm at 2.5 m distance
	Test Distance	2.5 – 3 m
	Test Duration	1 min per m² of enclosure surface (minimum 3 min)
IPX7 – IPX8 Immersion Test	Water Tank Material	Stainless steel or pressure-resistant material
	Tank Dimensions	800 * 800 * 1500 mm (W * D * H)
	Maximum Pressure Depth	Equivalent to ≥10 m water depth

Product Details

IPX1–IPX8 Comprehensive Waterproof Test System Automotive Waterproof Test Equipment 0

IPX1–IPX8 Comprehensive Waterproof Test System Automotive Waterproof Test Equipment 1
