EV Connector Flexing Tester with Servo Motor Drive, Adjustable Flexing Angle 0-360°, and PLC Intelligent Control

EV Connector Flexing Tester with Servo Motor Drive, Adjustable Flexing Angle 0-360°, and PLC Intelligent Control

Merknaam:	Sinuo
Modelnummer:	SNQC1009
MOQ:	1
Prijs:	Customized
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	5 sets/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Calibration Certificate (Cost Additional)

Rijmodus:

Servomotor

Proefstation:

enkel

Flexibel tarief:

0-60 cycli / min, kan vooraf worden ingesteld

Laadgewichten:

20N, 25N, 50N, 75N, 100N

Steekproef het Vastklemmen Methode:

Mechanische klem, de positie is verstelbaar

Elektrische besturingsmethode:

Intelligente PLC-besturing, 7-inch touch operation

Buigcycli:

0~999999 kan worden ingesteld, standaard 20000 cycli

Buigende hoek:

0-360° kan vrij worden aangepast

Verpakking Details:

Exportverpakking

Levering vermogen:

5 sets/maand

Markeren:

EV connector flexing tester

automotive connector test machine

plug and coupler flexing tester

Productbeschrijving

Automotive Connector Flexing Test Machine EV Plug and Coupler Flexing Tester

Complied Standards & Clauses

IEC62196-1: 2014 “Plug, socket-outlets, vehicle connectors and vehicle inlets–Conductive charging of electric vehicle-Part1: General requirements” clause 26.4, figure 14

IEC60309-1: 2012 “Plug, socket-outlets and couplers for industrial purposes–Part1: General requirements” clause 24.4, figure 9

Equipment Structure

This Mechanical Load Flexing Test Equipment is designed to evaluate the mechanical endurance of vehicle plugs, socket-outlets, and non-rewireable couplers under repeated flexing. Driven by a high-precision servo motor, the system swings the sample from side to side, accurately simulating real-world bending and flexing conditions. Once the preset number of cycles is reached, the test stops automatically, ensuring consistent and repeatable results.

The built-in adjustable load allows precise control over the mechanical stress applied to each sample, making it suitable for a wide range of automotive connectors and accessories. Its robust construction, intuitive operation, and reliable performance make this equipment ideal for automotive manufacturers, EV charging equipment producers, R&D laboratories, and third-party testing agencies seeking to ensure the durability and safety of their connectors and couplers.

This tester is an essential tool for verifying mechanical reliability, product quality, and compliance with international standards, giving manufacturers confidence that their vehicle connectors will withstand real-world usage.

Technical Parameters

Test Station	Single
Electrical Control Method	PLC intelligent integrated control, 7-inch humanized touch interface operation
Flexing Rate	0-60 cycles / min, can be preset
Flexing Cycles	0~999999 can be preset, default 20000 cycles
Load Weights	20N, 25N, 50N, 75N, 100N
Flexing Angle	0-360° can be adjusted freely (default 90°, 45°on either side of the vertical)
Drive Mode	Servo motor
Sample Clamping Method	Mechanical clamping, the position of clamping point is adjustable
Test Judgment	Judging by the signals given when the current is conducting or not
Load Power	External, load cabinet with adjustable voltage between conductors 0-250V and current AC0-400A adjustable is optional

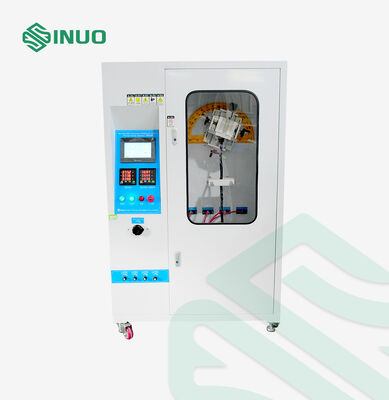

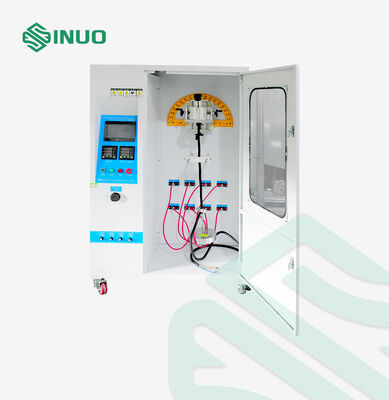

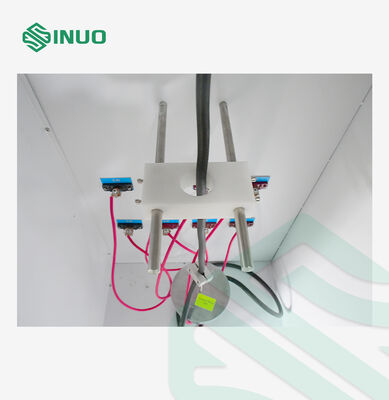

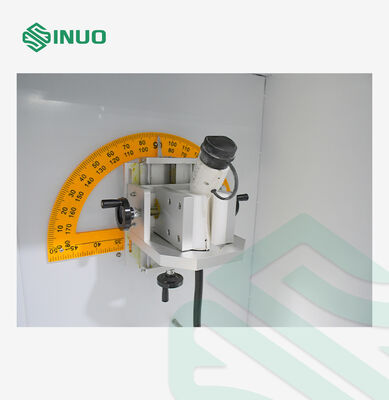

Details

EV Connector Flexing Tester with Servo Motor Drive, Adjustable Flexing Angle 0-360°, and PLC Intelligent Control 0
