Computer-Controlled Material Testing System for Tensile, Compression & Bending

Computer-Controlled Material Testing System for Tensile, Compression & Bending

Merknaam:	Sinuo
Modelnummer:	SNB02C-50KN
MOQ:	1
Prijs:	Customized
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	1 reeksen/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Calibration Certificate (Cost Additional)

Krachtmeting nauwkeurigheid:

0.001kg

De Waaier van de testkracht:

0 ̊50 kN

Versnellingstestbereik:

0.01-500 mm/min

De waaier van de misvormingsmeting:

00,2% ≈ 100% FS

Effectieve breedte van de test:

400 mm

Testslag:

800 mm

Laadnauwkeurigheid:

± 0,5%

Belastingsanalyse:

1/250000

Verpakking Details:

Ander

Levering vermogen:

1 reeksen/maand

Productbeschrijving

Computer-Controlled Material Testing System for Tensile, Compression & Bending

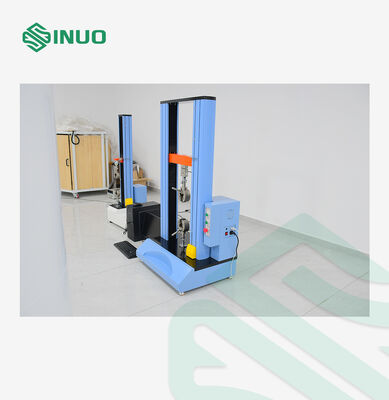

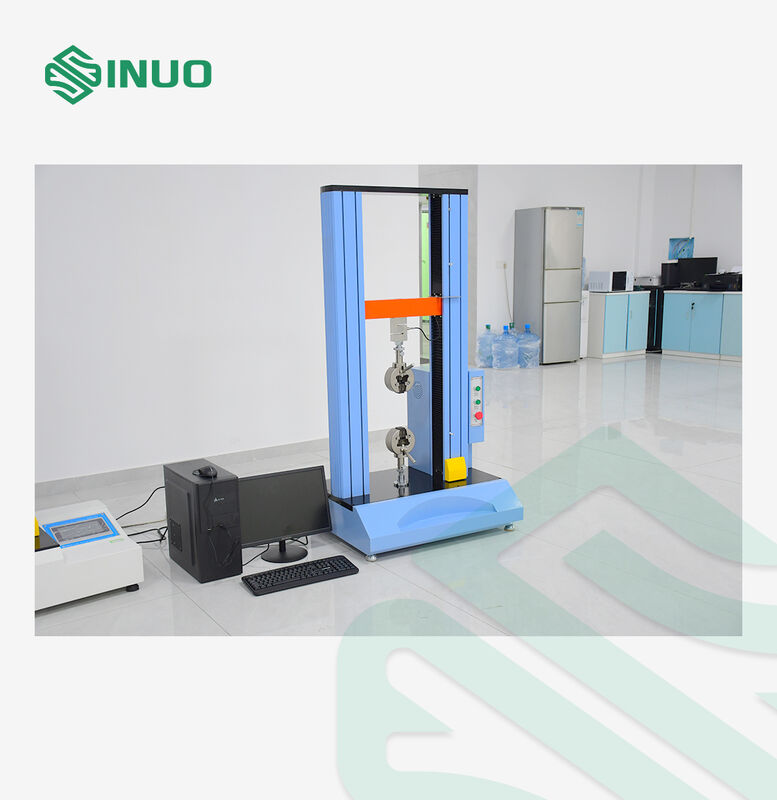

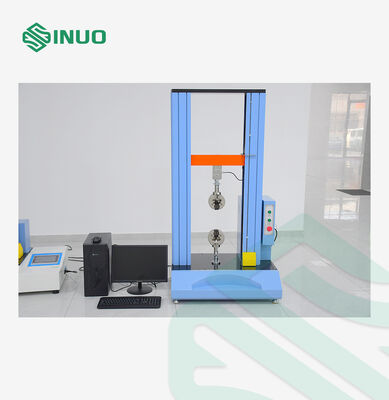

Equipment Overview

Our Servo Universal Testing Machine is a high-precision, computer-controlled system designed for evaluating the mechanical properties of a wide range of materials, including rubber, plastics, metals, cables, textiles, nonwovens, foils, and sheets. Ideal for both raw materials and finished products, it supports tensile, compression, peel, shear, tear, and bending tests with exceptional accuracy and reliability.

Equipped with modular grips and interchangeable fixtures, this versatile testing machine can be customized to meet diverse testing requirements in quality control, R&D, and material certification. Its servo-driven design ensures stable low-speed operation, fast dynamic response, and high overload capacity, eliminating the limitations of conventional stepper motors.

With intuitive operation, multi-data output, and graphical comparison capabilities, the system streamlines data analysis, allowing engineers and technicians to make informed decisions quickly. Whether you are conducting material performance evaluations or product development tests, this universal testing machine is an essential tool for enhancing efficiency and precision in your laboratory.

Technical Parameters

No	Specification	Details
1	Test Force Range	0–5000 kg
2	Force Measurement Display Accuracy	0.001 kg
3	Unit Conversion	kg, N, lb
4	Load Resolution	1/250,000
5	Load Accuracy	±0.5%
6	Displacement Unit	mm, cm, in
7	Displacement Measurement Display Accuracy	0.01 mm
8	Test Stroke	800 mm
9	Effective Test Width	400 mm
10	Speed Range	0.01–500 mm/min, stepless adjustment
11	Transmission System	Servo motor, Taiwan ZPT ball screw, TM2101 computer software
12	Safety Devices	Overload emergency stop, upper/lower stroke limit, automatic breakpoint stop

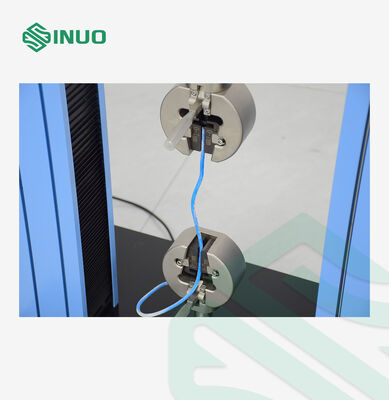

13	Fixtures	Custom wedge-type fixture set for customer products (with 4 pairs of jaws: 0–7 mm, 7–14 mm, 14–21 mm, 21–26 mm)
14	Accessories	Includes one desktop computer
15	Operation Mode	Computer-controlled, Windows platform; clear hierarchical operation with detailed help and prompts for easy use

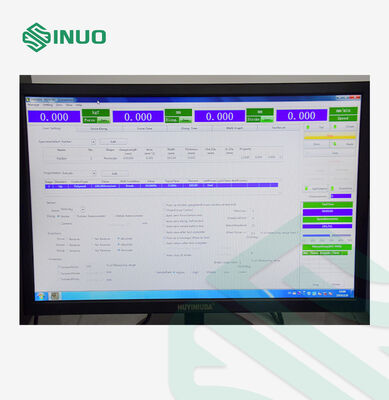

16	Software Features	Multi-thread parallel processing; real-time display of force-displacement, force-time, displacement-time, stress-strain curves; switchable views; Microsoft Word report format for easy, customizable reporting
17	Machine Dimensions	Approx. 800 × 550 × 1950 mm
18	Power Supply	220V / 50Hz
19	Power	1.0 kW
20	Total Weight	Approx. 150 kg
