300kN Crush & Nail Penetration Tester Battery Safety Test Chamber

300kN Crush & Nail Penetration Tester Battery Safety Test Chamber

Merknaam:	Sinuo
Modelnummer:	SN554B-30T
MOQ:	1
Prijs:	Customized
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	1 reeksen/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Calibration Certificate (Cost Additional)

Batterijgrootte:

300*300*250mm

Gewicht batterij:

18kg-30kg

Testruimte:

1000 × 1000 × 1000 mm ((W*D*H)

Afmetingen van apparatuur:

1200×1500×1850mm

De snelheid van de acupunctuur:

0,1-83 mm/s (instelbaar)

Materiaalstructuur:

Structuur als een doos

Drukbereik:

1~300kN

Verplaatsing:

0 ̊ 300 mm

Verpakking Details:

Ander

Levering vermogen:

1 reeksen/maand

Productbeschrijving

300kN Crush & Nail Penetration Tester Battery Safety Test Chamber

Complied Standards & Clauses

Conforms to SAE J2464 Standard (Clause 4.3.3.1: Penetration Test; Clause 4.3.6.1: Crush Test), AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, IS0 12405-4:2018, etc.

Equipment Overview

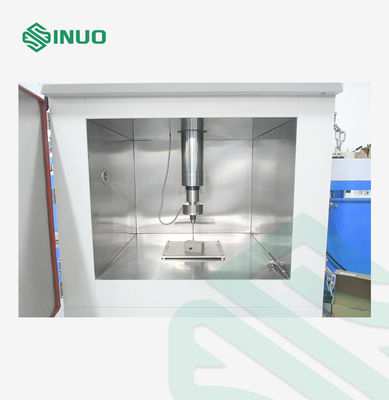

The Battery Crush and Nail Penetration Test Chamber is a high-precision safety testing system designed for single cells and power battery modules. With a maximum force of 300kN, this advanced tester accurately evaluates battery safety under extreme conditions, including crushing, deformation, and short-circuit scenarios.

Equipped with real-time voltage, force, displacement, and speed monitoring, the system ensures precise control throughout the test. The intuitive software allows you to set test conditions based on pressure, deformation, or voltage — individually or in combination — and automatically stops the test when any condition is met.

The dedicated control motherboard records all critical data and communicates instantly with the computer, enabling easy data tracking, comparison, and report generation. Ideal for battery manufacturers and R&D labs, this tester ensures compliance with international safety standards while providing reliable, repeatable results.

Technical Parameters

User battery cell size	Maximum size (length x width x height): 300300250mm, weight: 18kg-30kg
Test space	1000×1000×1000mm (width, depth and height)
Power	25KW
Dimensions	1200×1500×1850mm (width, depth and height, subject to actual design)
Weight (approx.)	800kg
Smoke exhaust port	Smoke exhaust port is 100mm in diameter
Test hole	A 50mm hole is opened on each side
Pressure range	1～300kN, sensor maximum range 306kN
Drive method	Servo Motor +Electric cylinder drive
Pressure resolution	0.01kN
Pressure accuracy	±1%FS
Pressure holding time	0~99min59s, can be set
Crush acupuncture speed	0.1-83mm/s (adjustable)
Speed accuracy	0.1mm/s~5mm/s, accuracy ±0.05mm/s; 5mm/s~83mm/s, accuracy ±0.1mm/s
Speed resolution	≤0.01mm/s
Displacement	0～300mm
Displacement accuracy	±0.1mm
Steel needle	1) Specifications: Φ3mm, Φ4mm, Φ5mm, Φ6mm, Φ8mm, Φ20mm 2) Length: L=200mm 3) Material: Heat Treatment of Steel 4) Angle: 45°~60° 5) Quantity: 2 each
Unit conversion	Kgf, N, kN
Crush head	1, R75250mm semi-cylinder, easy to disassemble. 2, 2R75250mm semi-cylinder, easy to disassemble.
Flat crush head	With a flat crush head 1. Semi-cylinder crush head: radius is 100mm, i.e., R100mm * 250mm. (Customize according to customer’s requirement) 2. Flat crush head.
Crush needle direction	Crush and acupuncture from top to bottom
Force display	Computer display
Sensor resolution	1／10000
Temperature acquisition system	Temperature acquisition frequency: 100ms
	Temperature acquisition range 0～+1000℃
	Temperature resolution: 0.1℃
	Temperature acquisition channel: 2 channels
	Temperature measurement accuracy: ±0.5℃
Voltage acquisition system	Voltage sampling frequency: 100ms
	Voltage acquisition accuracy: ≤±0.5%FS
	Resolution: 10mV
	Voltage acquisition range: 0~100V
	Voltage acquisition channel: 1 channel
Sampling line length	2m
Acquisition frequency	≥50Hz
Cutoff condition	Pressure, voltage and deformation can be set separately and monitored simultaneously. The test can be stopped as long as any one or more variables reach the set value.
Equipment structure	Box-type structure
Power Supply	380V
Control method	Remote computer control, distance ≥10m

Details
