EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester

Merknaam:	Sinuo
Modelnummer:	SNQC1013
MOQ:	1
Prijs:	Customized
Betalingsvoorwaarden:	T/t
Toeleveringsvermogen:	30 sets/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

Calibration Certificate (Cost Additional)

Toegepaste Lijst:

Lijst 5

Toegepaste Cijfers:

Fig13, fig14

Toegepaste standaard:

IEC 62196-1

Toepasselijke bepalingen:

Clausule 14.1.5, 14.1.6

Gewichtsconfiguratie:

165-750N

Bedieningsmethode:

Handmatige werking

Testpost:

Enkel station

Stekkers testen:

aangepast

Verpakking Details:

multiplexkast

Levering vermogen:

30 sets/maand

Productbeschrijving

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester

Complied Standards & Clauses

This test equipment conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14.

Equipment Overview

It is used to check the withdrawal force required when the test plug is withdrawn from the socket-outlet and latching device.

A Withdrawal force

The switched EV socket-outlet or switched vehicle connector with interlock is fixed to the support of the apparatus shown in Figure 13 of IEC62196-1:2022 that the axis of separation is vertical, and the movement of mating accessory is downwards.

The withdrawal force of the socket-outlet shall meet the requirements of following Table. The weights are included.

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester 0

B.1 Apparatus for checking the withdrawal force:

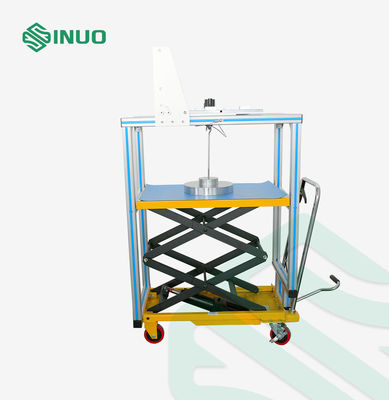

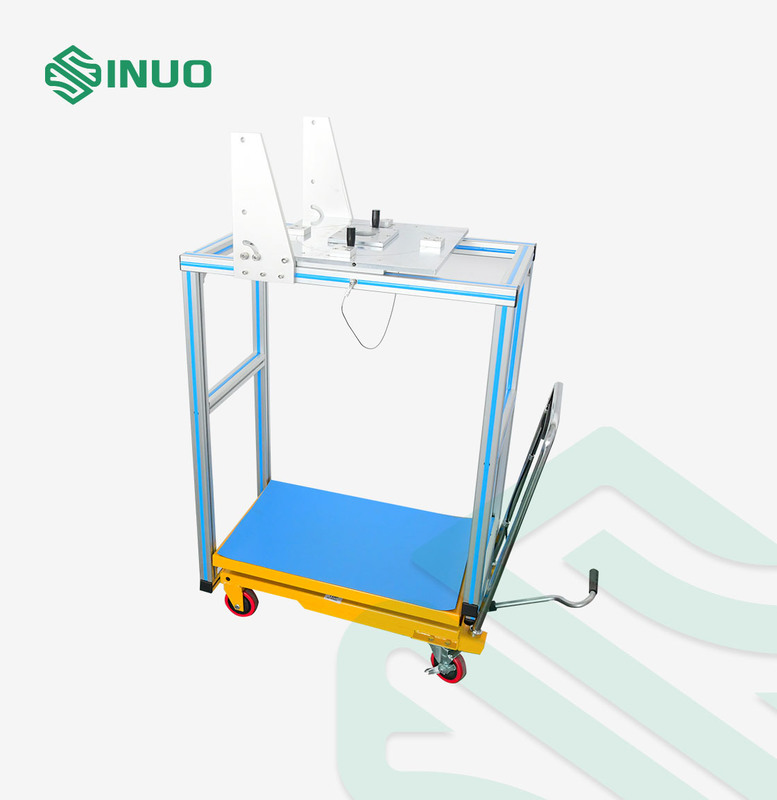

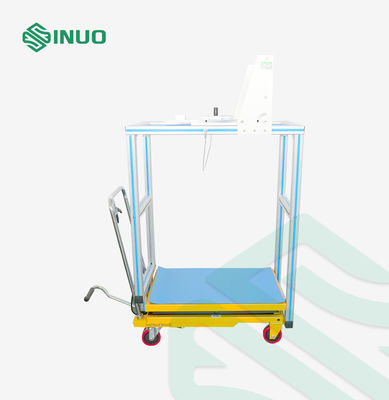

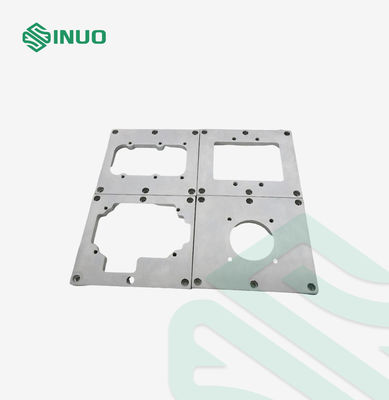

This device is mainly composed of the installation fixture, the clamping device, principal weight, supplementary weight and the test plug. Based on experience, the pull clamp is changed to a counterweight, the weight hook is directly connected to the test plug, and the fixture for holding the sample is configured. The specific shape is shown in figure 1.

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester 1

Technical Parameters

Standard	Figure No.:	Name
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-I sheet 1	Test-plug:32A,250 V AC VEHICLE INLET
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ilb sheet 1	Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEETS CONFIGURATION BB VEHICLE COUPLER 250 A 900 V DC STANDARD SHEET 3-Iia Sheet 1	Test VEHICLE CONNECTOR
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ild sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1	Test VEHICLE INLET
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illa sheet 1	Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illa sheet 3	Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACT
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illb sheet 1	Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illb sheet 3	Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-IIIa Sheet 2	Test VEHICLE INLET
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illc sheet 3	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Ib Sheet 1	Test VEHICLE CONNECTOR
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ilf sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2	Test VEHICLE INLET
IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illc sheet 1	Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS

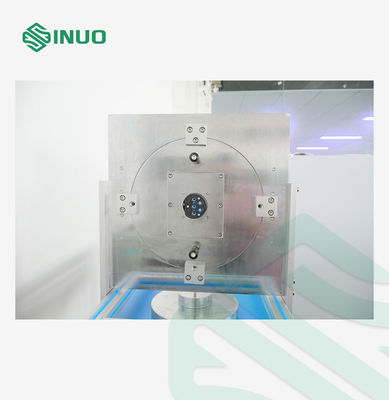

Details:

EV Charging Connector Mechanical Endurance Test EV Socket Withdrawal Force Tester 2
