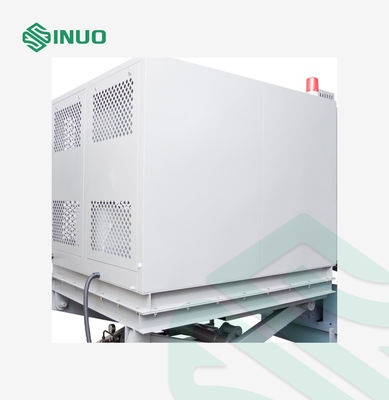

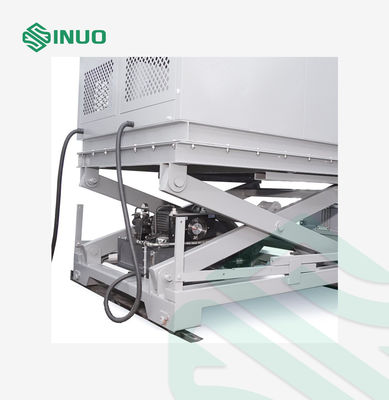

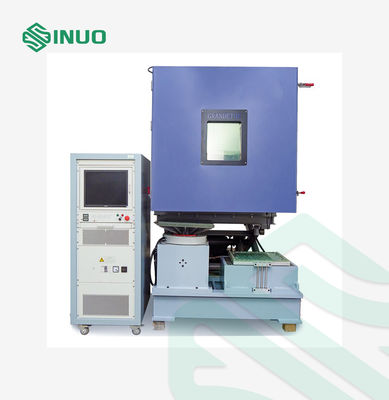

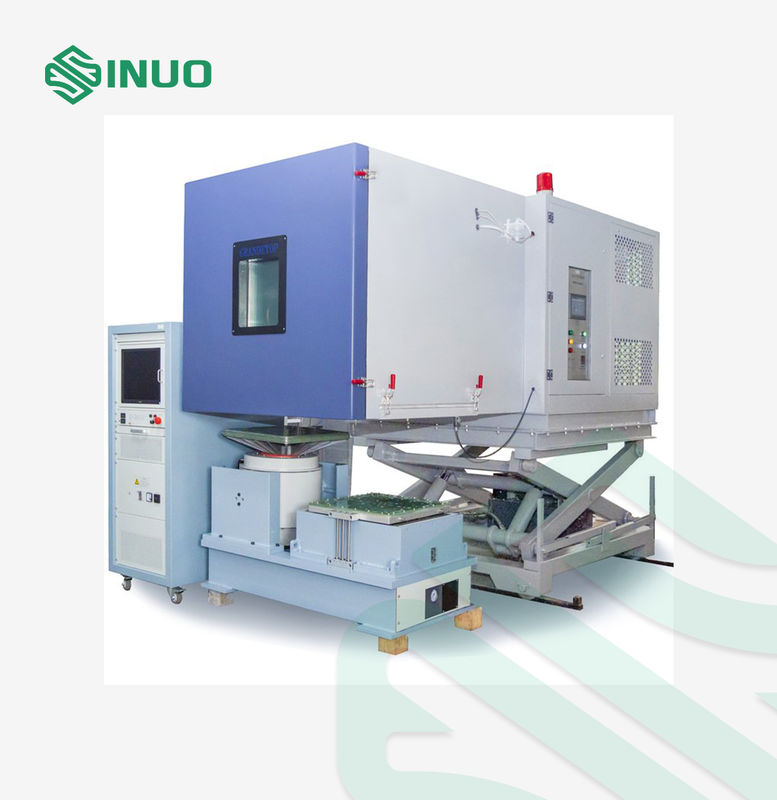

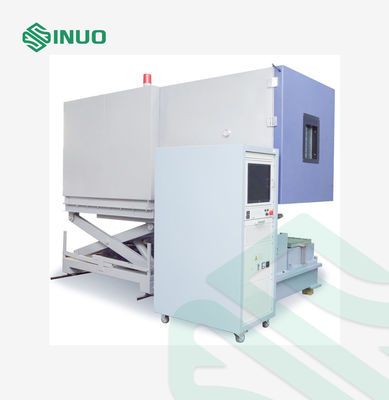

Electromagnetic Vibration Test Chamber with Temperature & Humidity Control

Electromagnetic Vibration Test Chamber with Temperature & Humidity Control

Merknaam:	Sinuo
Modelnummer:	SN888
MOQ:	1
Prijs:	Customized
Betalingsvoorwaarden:	T/t
Toeleveringsvermogen:	20 sets/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Calibration Certificate (Cost Additional)

Testtype:

Sinus sweep; Willekeurig; Schok

Frequentiebereik:

1 ‰ 3000 Hz

Maximale snelheid:

2.0m/s

Maximale versnelling:

Bewegende Roldiameter:

F320 mm

Gewicht bewegende spoel:

Uitgangsvermogen:

22kVA

Uitgangspanning:

Verpakking Details:

Multiplexbox

Levering vermogen:

20 sets/maand

Productbeschrijving

Electromagnetic Vibration Test Chamber with Temperature & Humidity Control

Complied Standards & Clauses

IEC 60068-2-6:1995 Environmental testing for electric and electronic products-Part 2: Test methods Test Fc: Vibration (sinusoidal)

IEC 60068-2-1:2007 Environmental testing for electric and electric products-Part 2-1: Tests-Test A: Cold, IDT

IEC60068-2-2: 2007 Environmental Testing-Part 2-1:Tests- Test B-Dry heat, IDT

IEC60068-2-30:2005 Environmental Testing-Part 2-30:Tests-Test Db.: Damp heat, cyclic(12h+12h cycle),IDT

IEC60068-2-78:2001 Environmental Testing-Part 2-78:Tests-Test Cab: Damp heat, steady

state, IDT

Product overview

It is used to provide temperature and humidity change environment for aerospace, aviation, aviation, petroleum, chemical, electronics, communications and other scientific research and production units. At the same time, the electrical vibration stress can be applied to the test sample according to the specified period in the test chamber for test the reliability and adaptively of the sample. The product introduction is divided into two parts, the first part is Electromagnetic Vibration Testing Machine and the second part is Temperature, Humidity and Vibration Three Comprehensive Test Chamber

SN888-7200B-CT.

Technical Parameter

A20T34 electromagnetic excitation generator parameters
Maximum sinusoidal excitation force	2200Kg.f peak
Maximum Random Exciting Force	2200Kg.f rms
Maximum impact excitation force	4400Kg.f
Frequency Range	1～3000 Hz
Maximum displacement	76 mm p-p
Maximum speed	2.0m/s
Maximum acceleration	90G
First-order resonant frequency	3200 Hz±5%
Payload	400 kg
Vibration isolation frequency	2.5 Hz
Moving coil diameter	Ф320 mm
Moving coil weight	25kg
Screw on the table	17×M10
Flux leakage	＜10gauss
Allowable eccentric moment	500N.m
Equipment size	L 1200mm×W 870mm×H 1100mm (vertical table)
Equipment weight	1700Kg (Excluding horizontal slide table)
LA-22K digital switching power amplifier
Output power	22KVA
Output voltage	100V
Output current	220A
Amplifier efficiency	≥90%
SNR	> 75 dB
Harmonic distortion	0.5% THD @ 500Hz
Input signal range	±10 Vpeak
Output DC stability	<5mVdc
Amplifier weight	500KG
Amplifier size	W 880mm×D 580mm×H 1520mm
Servo protection system
Function	Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss
Digital vibration controller VCS-2
Hardware configuration	2 simultaneous input channels, 1 output channel
Control function module	Sine, random, classical shock
Control computer	Original Acer computer with 17″ LCD monitor, keyboard/optical mouse
Software	English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions.
Operating system	Windows 10
Acceleration sensor LAB	Frequency range: 1-12000Hz Sensitivity: 50mv/g Temperature range: -24 - 250℃

Main technical parameters of temperature and humidity chamber
Studio size	(W×D×H)220×220×150 cm, volume 5400L
Overall dimensions (approx.)	(W×D×H)260×585cm*height: 1. Separate temperature and humidity conditions: the highest is 280CM 2. When doing vertical vibration and temperature and humidity: the height is about 360CM --------Non-standard products are subject to the final design. The height is related to the height of the vibration table. A 2-ton vibration table is approximately 1.7 meters)
Temperature range	Commonly used temperatures: -40℃～+180℃ Limit temperature: -70～+180℃
Temperature fluctuation	≤±0.5℃ (no load, constant state)
Temperature deviation	≤±2℃ (no load, constant state)
Heating time	-40℃～+180℃ About 70min, ≧3℃/min, linear, no load
Cooling time	+180℃～-40℃ about 70min, ≧3℃/min, linear, no load
Standard load	No load (in the case of single blind plate, excluding vibration table load)
Humidity range	20%～98%RH
Humidity deviation	±3%RH (when the humidity is >50%RH) ±5%RH (when the humidity is ≤50%RH)
Temperature and humidity chart

Test Methods	GB/T5170
Noise	A Sound level ≤80dB(A), (1m in front of the door, 1.2m above the ground, in free space)
Pollution, electromagnetic radiation	Comply with relevant standard requirements
The above product operating technical data, except for the cooling speed, are all measured at room temperature of 25°C and relative humidity ≤85%R.H.

Details

Electromagnetic Vibration Test Chamber with Temperature & Humidity Control 0
