IP5X IP6X Test Machine Industrial Dust Ingress Test Sand and Dust Test Chamber

IP5X IP6X Test Machine Industrial Dust Ingress Test Sand and Dust Test Chamber

Merknaam:	Sinuo
Modelnummer:	SN441-2160L
MOQ:	1
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	10 Sets Per Month

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Place of Origin:

China

Certificering:

Calibration Certificate (Cost Additional)

Inner chamber size:

1500*1200*1200mm(W*D*H)

Outer chamber size:

1900*2000*2500 mm(W*D*H)

Fine dust:

Below 75um

Talc dosage:

2～5kgm³

Air flow rate:

No more than 2m/s

Air flow meter:

1-20L/M

Load-bearing:

Dust concentration:

2kg/m³

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Productbeschrijving

IP5X IP6X Test Machine Industrial Dust Ingress Test Sand and Dust Test Chamber

Complied Standards & Clauses

Conforms to IEC60068-2-68-La2, ISO20653-La2, IEC60529, etc.

Product Overview

The SN441-2160L Sand and Dust Test Chamber is engineered to simulate extreme sand and dust environments for evaluating the durability and sealing performance of electrical and electronic components, automotive and motorcycle parts, and other industrial equipment. Compliant with IEC60068-2-68, ISO20653, and IEC60529, this chamber helps manufacturers assess the harmful effects of airborne particles on products during use, storage, and transport.

Using a conical funnel design with high-efficiency circulation, fine dust is drawn from the chamber bottom and repeatedly dispersed from the top, mimicking natural or operational dust exposure. This ensures reliable, repeatable test conditions to meet demanding product validation standards.

Technical Parameters

Item	Specification
Model	SN441-2160L
Inner Chamber Size (W×D×H)	1500 × 1200 × 1200 mm
Outer Chamber Size (W×D×H)	Approx. 1900 × 2000 × 2500 mm
Dust Type	Talcum powder, <75 µm
Dust Concentration	2 kg/m³
Talcum Powder Dosage	2–5 kg/m³
Airflow Rate	≤ 2 m/s
Dust Flow Direction	Top-down
Dust Baking Temperature Range	RT+10℃ ~ 60℃
Air Flow Meter Range	1–20 L/min
Shock Time / Test Duration	1 s ~ 99 h (adjustable)
Cycle Control	1 s ~ 99 h (adjustable)
Vacuum Time	1 s ~ 99 h (adjustable)
Load Capacity	50 kg
Observation Window	1 pc
Lighting	1 pc
Control System	PLC + Touchscreen (Sinuo)
Controller Brand	MCGS / XINJE
Flow Meter	Digital, touchscreen display
Vacuum System	Vacuum pump + regulators
Dust Heating	Stainless steel mica heating jacket
Inner Material	SUS201 stainless steel
Outer Material	Electrostatic painted A3 steel
Power Supply	AC380V, 50Hz, 3-phase, 32A
Power Consumption	3 KW (no load)
Environmental Conditions	23±5℃, RH 25–70%, 86–106 kPa
Safety Protection	Phase protection, leakage, over-temp, abnormal protection

Details

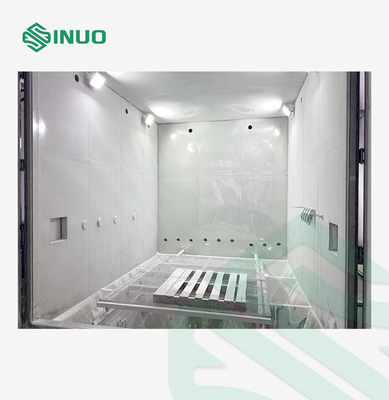

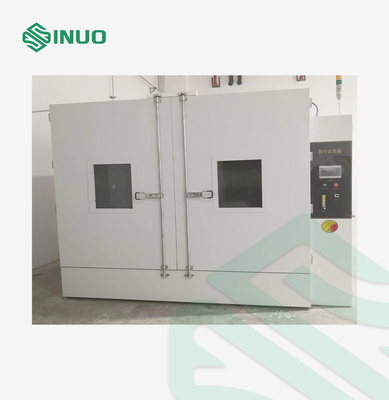

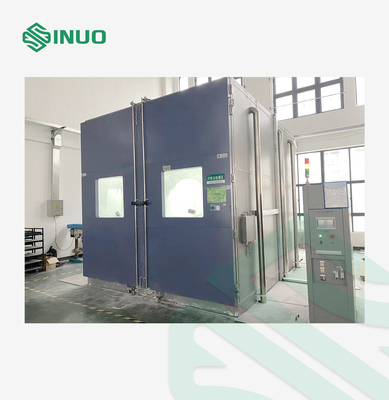

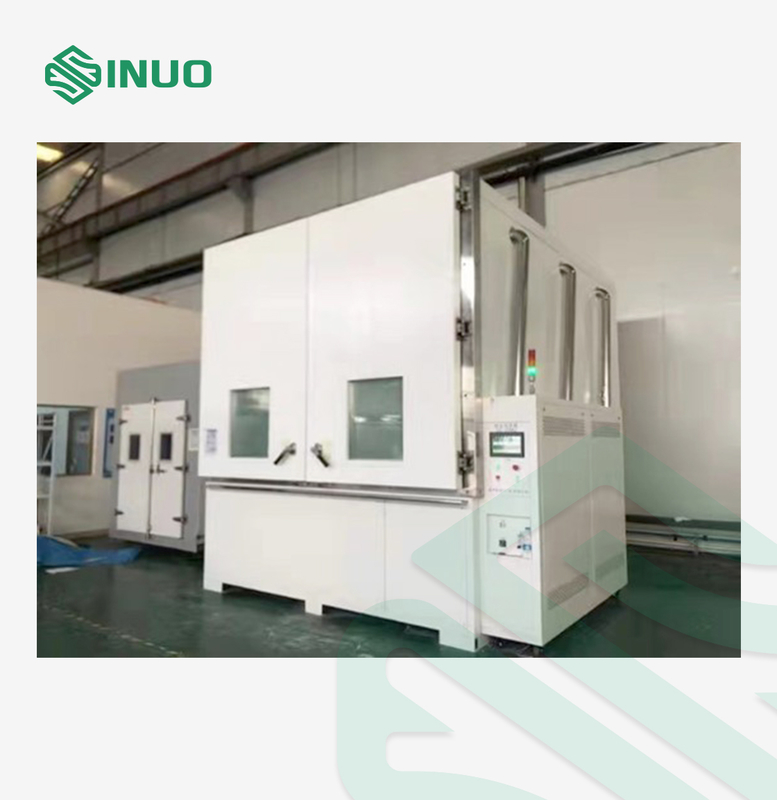

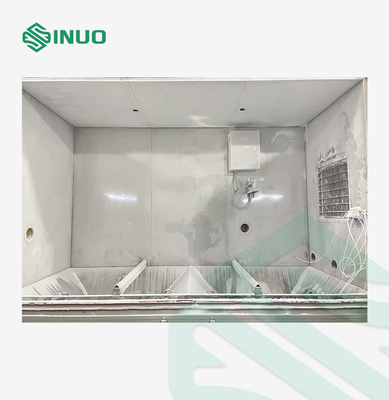

IP5X IP6X Test Machine Industrial Dust Ingress Test Sand and Dust Test Chamber 0
